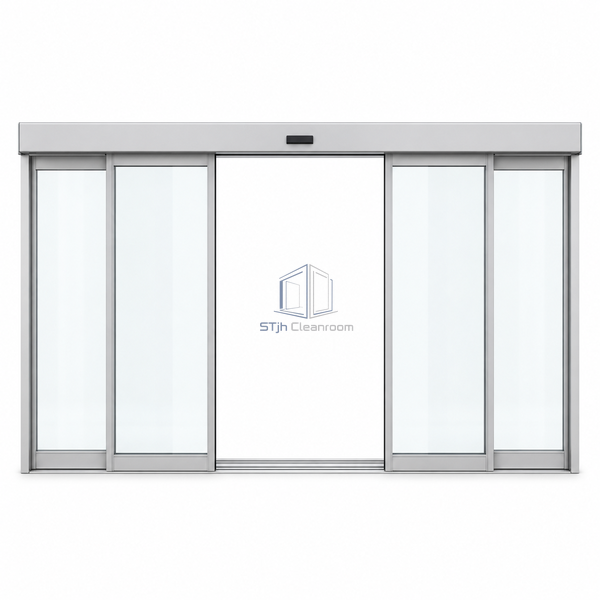

STjh automatic telescopic sliding door on white with four glazed moving leaves forming staggered stacks on both sides of a central opening.

STJH-AUTOMATIC-CLEANROOM-SLIDING-DOOR-TELESCOPIC

Automatic Cleanroom Sliding Door Telescopic

A four-leaf automatic telescopic arrangement creates a broad central opening with stacked panels at both sides.

Two panel stacks use side parking space efficiently.
Four narrower moving leaves serve a broad central passage.
Telescopic travel provides an alternative where full-width blade parking is limited.

Request a Quote Browse Products

Product Introduction

Four moving leaves operate as two synchronized telescopic pairs, separating from the center and overlapping toward the side parking zones. The overhead drive coordinates the staggered travel rather than moving a single broad blade on each side. This selected bi-parting arrangement supports a 1200–4000 mm clear-width range with an 80 kg maximum load per leaf. Slim framed glazing keeps the multiple panel paths visible without introducing an opaque barrier across the entrance.

Key Features

Two panel stacks use side parking space efficiently.
Four narrower moving leaves serve a broad central passage.
Telescopic travel provides an alternative where full-width blade parking is limited.

Technical Parameters

Selected Configuration	Bi-parting automatic telescopic
Moving Leaves	Four
Telescopic Groups	Two pairs
Clear Opening Width	1200–4000 mm
Maximum Clear Height	3000 mm
Maximum Leaf Load	80 kg per leaf
Drive Arrangement	Synchronized overhead telescopic drive
Leaf Paths	Parallel overlapping tracks
Selected Construction	Aluminum-framed glazing
Customization	Available for the intended broad entrance and lateral stacking space.

Applications

Wide automatic corridors in clean facility support areas.
Healthcare entrances with restricted side parking depth along the wall.

Solutions for Your Application

Can a broad opening fit where ordinary bi-parting leaves lack side parking space?

Each side uses two overlapping panels, reducing the width occupied by a parked blade.

Does the quoted width range apply to a two-leaf single-sided version?

This selected specification uses four moving leaves in a bi-parting telescopic configuration.

Available Options

Touchless activation devices.
Glazing profile and finish selection.
