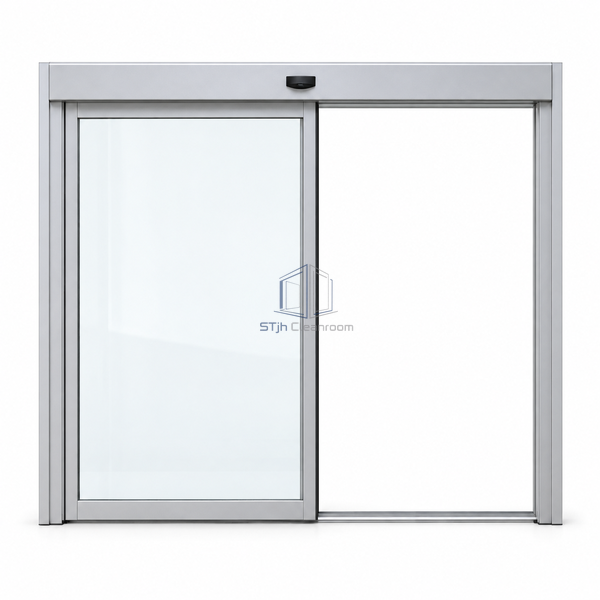

STjh single-leaf automatic sliding door on white with clear aluminum-framed glazing and a covered overhead operator.

STJH-AUTOMATIC-CLEANROOM-SLIDING-DOOR-SINGLE

Automatic Cleanroom Sliding Door Single-Leaf

A belt-driven single sliding leaf for automatic access along one side of a clean facility entrance.

One moving blade simplifies the entrance layout.
Belt transmission avoids a swinging leaf in the approach zone.
Glazed construction permits a clear view of the next space.

Request a Quote Browse Products

Product Introduction

The single moving leaf travels laterally beneath a concealed automatic operator. A toothed belt transmits movement through the overhead mechanism, with rollers and guide profiles controlling the blade along its path. The selected glazed construction uses slim aluminum profiles around a clear pane to retain visibility. This one-sided opening arrangement suits entrances with parking space beside one jamb, while optional touchless activation allows users to request access without operating a handle.

Key Features

One moving blade simplifies the entrance layout.
Belt transmission avoids a swinging leaf in the approach zone.
Glazed construction permits a clear view of the next space.

Technical Parameters

Leaf Arrangement	Single automatic sliding leaf
Clear Opening Width	800–3000 mm
Maximum Clear Height	3000 mm
Maximum Leaf Weight	150 kg
Drive Transmission	Toothed belt
Selected Profile Thickness	20 mm aluminum profile
Selected Glazing	10 mm single glazing
Running Components	Plastic rollers with ball-bearing guide pulleys
Operator Mounting	Overhead wall or passage mounting
Customization	Available for the intended access width and activation arrangement.

Applications

Automatic entrances to clean facility support corridors.
Healthcare passages with side space for one sliding leaf.

Solutions for Your Application

Will the blade swing into the approach lane?

The powered leaf moves parallel to the wall along an overhead track.

Can users request entry while carrying materials?

A touchless activation device can be selected for the automatic operator.

Available Options

Touchless wall activation.
Insulating-glass profile configuration.

Planning a Automatic Cleanroom Sliding Door Single-Leaf specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
