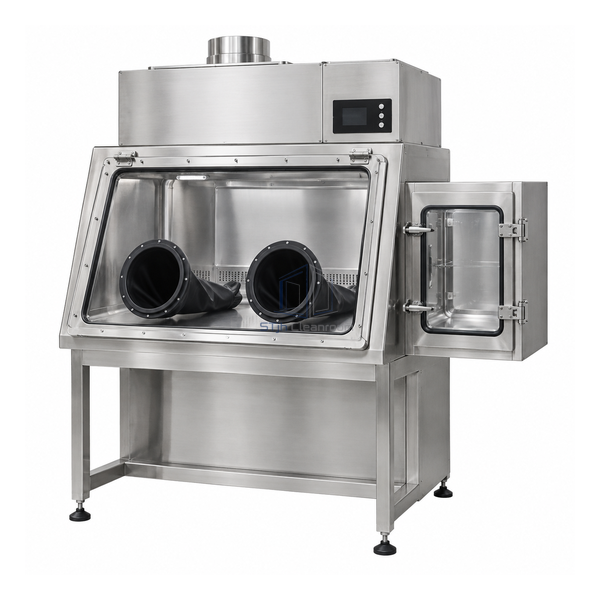

STjh 940 mm aseptic processing isolator with two glove ports, a compact steel chamber and right material airlock

STJH-ASEPTIC-PROCESSING-ISOLATOR-940-2G

Aseptic Processing Isolator 940 mm Work-Zone Two-Glove

The smallest positive-pressure platform, with a 940 mm ISO Class 3 work zone, two gloves and a side material airlock.

940 mm work-zone width
700 W published consumption
305 kg gross weight

Request a Quote Browse Products

Product Introduction

This model provides the lowest published weight and electrical demand in its family. Its 940 x 600 mm chamber supports compact aseptic procedures through two glove ports, while the 350 mm-wide material airlock preserves a separate route for incoming components.

Key Features

Compact positive-pressure barrier

The shortest chamber protects a small aseptic process without the floor length of the larger isolators.

Separate material entry

A side airlock keeps component transfer distinct from the active two-glove work area.

Lower utility burden

Published 700 W consumption is the lowest among the three retained configurations.

Technical Parameters

External Dimensions	1450 x 810 x 1580 mm including airlock
Work-Area Dimensions	940 x 600 x 660 mm
Material Airlock	350 x 400 x 435 mm
Glove Ports	2
Air Classification	ISO Class 3
Laminar Air Velocity	0.40 m/s ± 0.05 m/s
Air System	100% exhaust, no recirculation
Pressure Mode	Positive
Power and Weight	700 W; 305 kg gross
Customization	Airlock side, glove specification, utilities and transfer accessories can be configured for the intended aseptic process.

Applications

Compact aseptic preparation, small-batch sterile manipulation and formulation steps that fit a two-glove work envelope.

Solutions for Your Application

A full-length isolator adds excessive weight and electrical load for a small process.Use the 940 mm platform when two glove positions and one compact airlock meet the material flow.

Incoming components could crowd the active sterile work surface.Stage each load in the side airlock before moving it into the main chamber.

Available Options

Airlock orientation, glove and sleeve material, utility penetrations, worktop fittings and monitoring package may be specified.

Planning a Aseptic Processing Isolator 940 mm Work-Zone Two-Glove specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
