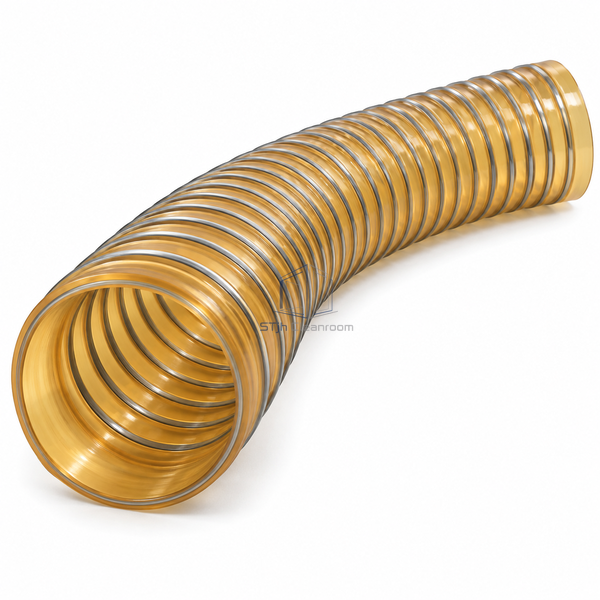

STJH-ANTISTATIC-FLEXIBLE-DUCT-HOSE-DN150

Antistatic Flexible Duct Hose DN150 Permanently Antistatic PU

Large antistatic hose for high-throughput material connections.

Broad smooth bore accommodates bulk transfer duty.
Heavy reinforced wall supports the larger hose section.

Request a Quote Browse Products

Product Introduction

A 150 mm internal passage carries a substantial process stream through an abrasion-resistant polyurethane lining. The large reinforced section requires a wide routing radius, making it suitable for open equipment connections where hose support can preserve its geometry.

Key Features

Broad smooth bore accommodates bulk transfer duty.
Heavy reinforced wall supports the larger hose section.

Technical Parameters

Inside Nominal Diameter	150 mm
Outside Diameter	175 mm
Liner	Smooth polyurethane
Reinforcement Type	Spring-steel helix
Operating Pressure at 20 °C	1.95 bar
Vacuum Capacity at 20 °C	0.94 bar
Bend Radius	600 mm at inner lining
Surface Resistance	Below 10^9 ohm
Service Temperature	−40 to +90 °C
Customization	Available for the intended bulk-handling duty and operating environment.

Applications

Large bulk-transfer connections
Mobile high-volume extraction equipment

Solutions for Your Application

A small connector restricts high-throughput equipment.

The 150 mm bore provides a substantially larger passage.

A heavy large hose can sag at the machine outlet.

Planned supports maintain a broad curve without concentrating load at the connection.

Available Options

Supported connection layouts
Custom cut lengths and compatible couplings
