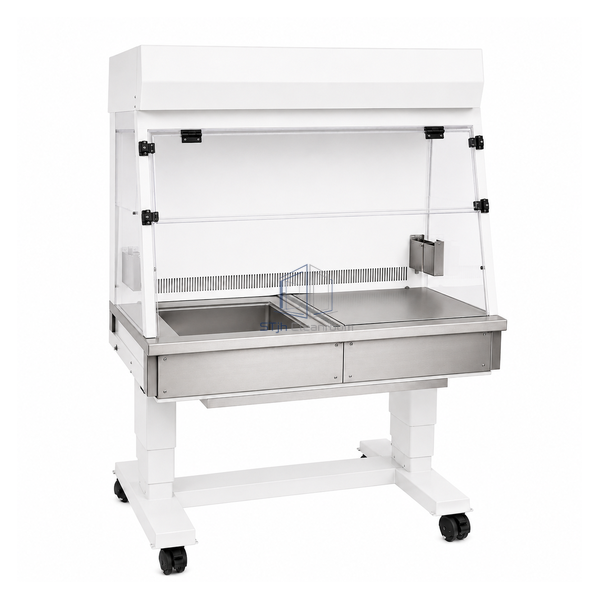

STjh 1224 mm mouse transfer station showing a recessed clean-side deep well and divided stainless worktop

STJH-ANIMAL-TRANSFER-STATION-MOUSE-DEEPWELL-1224

Animal Transfer Station 1224 mm Mouse-Cage Deep-Well

A mouse-cage transfer station with distinct clean and dirty zones, a built-in deep well and feeder holders.

Mouse-cage deep well
Separated clean and dirty zones
Independent HEPA modules

Request a Quote Browse Products

Product Introduction

The 1081 mm work zone divides into a 625 mm clean area containing the deep well and a 314 mm dirty area. Independent supply and exhaust HEPA modules create push-pull airflow around disposable mouse IVC handling.

Key Features

Clean-side deep well

The recessed zone holds the disposable mouse cage securely during transfer.

Dedicated dirty area

Used cage components remain separated from the larger clean handling surface.

Push-pull airflow

Independent supply and exhaust modules manage air across the divided work zone.

Technical Parameters

External Dimensions	1224 x 780 x 1983–2289 mm without sidebars
Work Area	1081 x 718 x 659 mm
Clean Area Width	625 mm including deep well
Dirty Area Width	314 mm
Cage Type	Disposable mouse IVC
Supply Filtration	Independent HEPA module
Exhaust Filtration	Independent HEPA module
Airflow Pattern	Push-pull
Integrated Fixtures	Deep well and feeder holders
Customization	Working height, cage fixtures and side accessories can be adapted to the mouse housing system.

Applications

Disposable mouse IVC transfers and cage changes requiring separated clean and dirty handling areas.

Solutions for Your Application

Clean feeders and dirty cage parts overlap on a narrow surface.Use the defined clean deep-well side and separate 314 mm dirty zone.

The cage shifts during a delicate animal transfer.Seat the compatible mouse cage in the integrated deep well before opening it.

Available Options

Feeder holders, sidebars, working-height adjustment and cage-specific well inserts can be configured.
