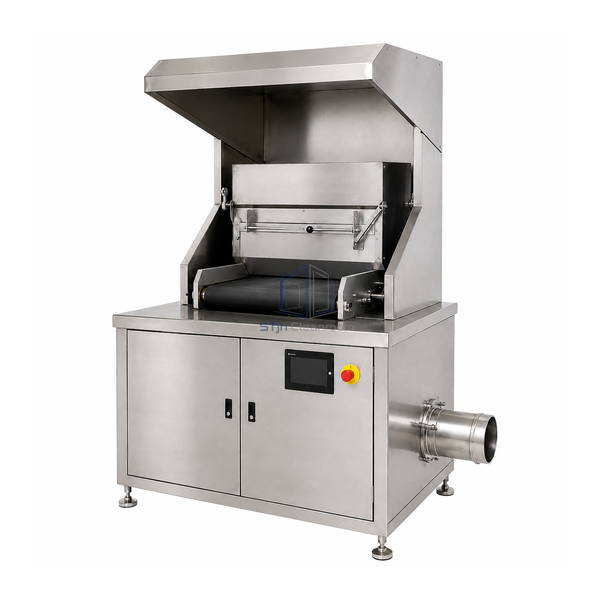

STjh central vacuum bedding disposal station showing a guarded conveyor feed and side vacuum pipe connection

STJH-ANIMAL-BEDDING-DISPOSAL-STATION-CENTRAL

Animal Bedding Disposal Station Central Vacuum

A high-throughput dirty-bedding station with conveyor, macerator and centralized vacuum collection.

Integrated macerator
Central vacuum transfer
Bulk collection choices

Request a Quote Browse Products

Product Introduction

This model replaces bag-by-bag collection with a connected material-handling line. Bedding enters beneath a G4, F7 and H14 backdraft hood, then passes through a conveyor and macerator before central vacuum transport to the chosen bulk receiver.

Key Features

Automated waste movement

The conveyor and macerator prepare bedding for transfer without manual bag relocation.

Filtered dumping hood

Three filtration stages manage dust at the operator loading point.

Scalable technical unit

Compact, regular and double technical-unit formats support different facility throughput.

Technical Parameters

Loading Filtration	G4, F7 and H14
Capture Type	Backdraft hood
Primary Conveyor	Integrated
Size Reduction	Macerator
Transfer Method	Central vacuum
Collection Options	Mobile bins, sealed container or dumpster
Technical Unit Sizes	Compact, regular or double
Operating Scale	High throughput
Primary Waste	Dirty animal bedding
Customization	Technical-unit size, conveyor and bulk receiver connection can be designed for the facility waste route.

Applications

Large animal facilities, centralized cage-wash operations and automated dirty-bedding collection lines.

Solutions for Your Application

Manual bags cannot keep pace with large daily cage volumes.Convey and macerate bedding before sending it through the centralized vacuum line.

The existing waste receiver differs from a standard bin.Configure discharge for mobile bins, a sealed container or the facility dumpster.

Available Options

Compact, regular or double technical unit, conveyor layout and final receiver connection can be selected.

Planning a Animal Bedding Disposal Station Central Vacuum specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
