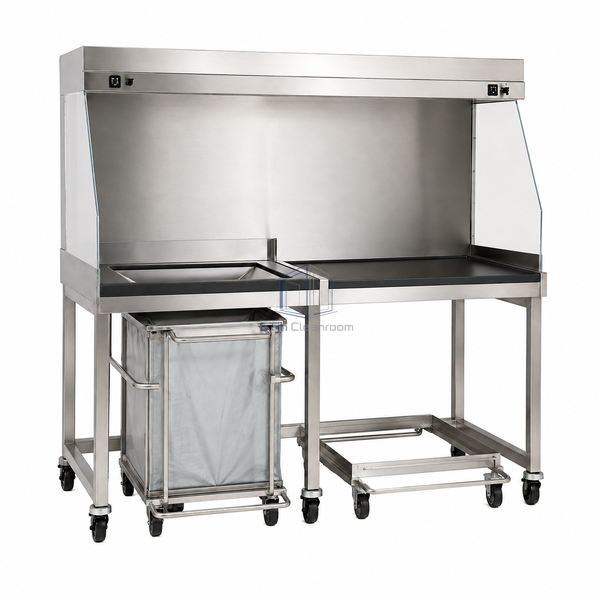

STjh 1800 mm bedding disposal station with separate dumping and cage trolley zones beneath a wide hood

STJH-ANIMAL-BEDDING-DISPOSAL-STATION-1800

Animal Bedding Disposal Station 1800 mm Dual-Zone

A wide dirty-side disposal station with separate dumping and trolley zones, staged filtration and bag-trolley waste collection.

1800 mm work width
Separate dumping and trolley sides
Three-stage filtration

Request a Quote Browse Products

Product Introduction

The 1800 mm work zone supports medium and large vivarium throughput by separating active cage dumping from trolley movement. A sliding reduction funnel directs bedding into a bag trolley, while G4 and F7 prefilters protect the final HEPA stage.

Key Features

Dual-zone workflow

Cage emptying and trolley handling occupy different portions of the wide station.

Sliding reduction funnel

The movable funnel directs waste into the bag trolley beneath the deck.

Protected HEPA stage

G4 and F7 prefilters intercept coarse bedding dust before final filtration.

Technical Parameters

Work-Surface Width	1800 mm
Work Zones	Cage dumping and trolley handling
Referenced Inflow	Approximately 0.6 m/s
First Prefilter	G4
Second Prefilter	F7
Final Filter	HEPA
Waste Funnel	Sliding reduction type
Collection	Bag trolley
Facility Scale	Medium to large vivarium
Customization	Funnel position, trolley interface and work-zone accessories can be configured for the dirty-side process.

Applications

Medium-to-large vivarium dirty-side cage processing, manual bedding dumping and bagged waste collection.

Solutions for Your Application

Cage trolleys interfere with the active dumping position.Assign the two sides of the 1800 mm station to dumping and trolley movement.

Large bedding particles rapidly load the final filter.Retain the staged G4 and F7 prefilters ahead of the HEPA filter.

Available Options

Funnel travel, bag-trolley format, worktop accessories and room-side connections can be selected.

Planning a Animal Bedding Disposal Station 1800 mm Dual-Zone specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
