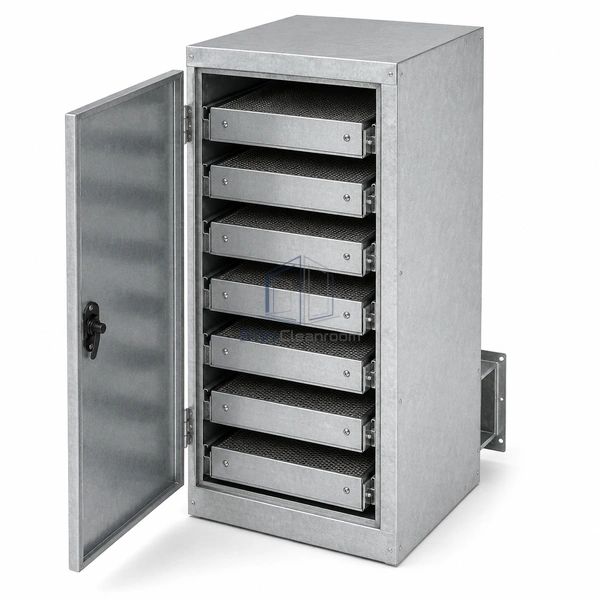

AMC Filtration System 8-Cell 2100 m3/h

A medium-capacity eight-cell system that doubles adsorbent inventory while retaining the family contact time and resistance.

Eight vertical cells
2100 m3/h rated flow
0.281 m3 adsorbent inventory

Request a Quote Browse Products

Product Introduction

The eight-cell arrangement expands internal height to 1300 mm and carries 0.281 m3 of adsorbent. It supports 2100 m3/h while maintaining the same 0.5 s contact time and 105 Pa pressure drop as the compact system. This makes it appropriate for medium support rooms or process areas that need roughly twice the chemical capacity without moving to the double-width sixteen-cell footprint.

Key Features

Medium system scale

Eight cells cover higher room airflow while retaining a single-width 610 mm internal dimension.

Preserved treatment time

The additional media area keeps contact time at 0.5 s at the 2100 m3/h duty.

Flexible cell loading

Media can be distributed across cells for one dominant contaminant or a defined multi-gas sequence.

Technical Parameters

Internal Dimensions	610 x 1300 x 810 mm
Adsorbent Cells	8
Media Volume	0.281 m3
Rated Airflow	2100 m3/h
Contact Time	0.5 s
Pressure Drop	105 Pa
System Layout	Single-width vertical cell bank
Media Type	Application-selected deep-bed adsorbent
Primary Scale	Medium support room or process area
Customization	Available based on the intended application and operating environment.

Applications

For medium semiconductor support rooms, industrial control spaces and corrosion-control ventilation with sustained molecular contaminant load.

Solutions for Your Application

A taller cell bank does not fit below the mechanical-room ceiling or service platform.Coordinate the 1300 mm internal height, external casing, media withdrawal path and overhead services before selection.

Different media cells exhaust at different rates but are replaced as one batch.Track the contaminant duty of each cell group and use samples or sensors to set chemistry-specific replacement intervals.

Available Options

Confirm acid, base, sulfur and VOC loads, cell media sequence, airflow, fan, prefilter, monitoring, cabinet access and spare media.

Planning a AMC Filtration System 8-Cell 2100 m3/h specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
