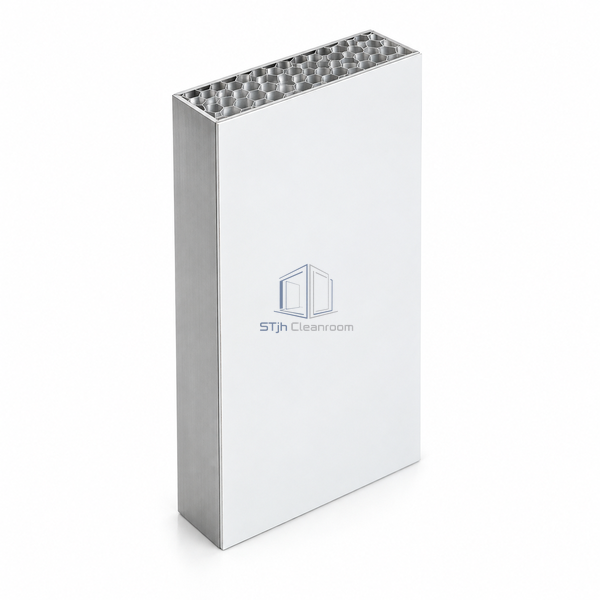

Aluminum Honeycomb Cleanroom Sandwich Panel 50 mm Steel-Faced

Flat steel-faced wall module built around a metallic honeycomb core.

Metal cells contain no mineral fibers.
Four-sided extrusion keeps the perimeter defined.

Request a Quote Browse Products

Product Introduction

Thin aluminum cells distribute support between galvanized skins. A box-extrusion perimeter closes the core and provides a flush connection line, producing a panel suited to repeated cleanroom wall bays.

Key Features

Metal cells contain no mineral fibers.
Four-sided extrusion keeps the perimeter defined.

Technical Parameters

Core Material	3003 aluminum honeycomb
Panel Thickness	50 mm
Core Thickness	48.8 mm
Maximum Length	6000 mm
Steel Facing Thickness	0.5 mm
Frame Material	6063 aluminum
Frame Section	Box extrusion
Surface Finish	Coated galvanized steel
Joint Type	Flush modular connection
Customization	Available for the intended application and operating environment.

Applications

Non-fibrous cleanroom partitions
Precision assembly room walls

Solutions for Your Application

Mineral fibers are undesirable in the chosen wall construction.

The supporting center is formed from aluminum cells.

Broad skins need support without a solid heavy core.

Honeycomb webs distribute support across their area.

Available Options

Panel length cutting
Selected metal finish

Planning a Aluminum Honeycomb Cleanroom Sandwich Panel 50 mm Steel-Faced specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
