The window frame must match the selected sandwich-panel thickness.
Choose the 50, 75 or 100 mm profile depth corresponding to the host panel.
STJH-ALUMINUM-FRAMED-CLEANROOM-WINDOW-ON-PANEL-MOLECULAR-SIEVE

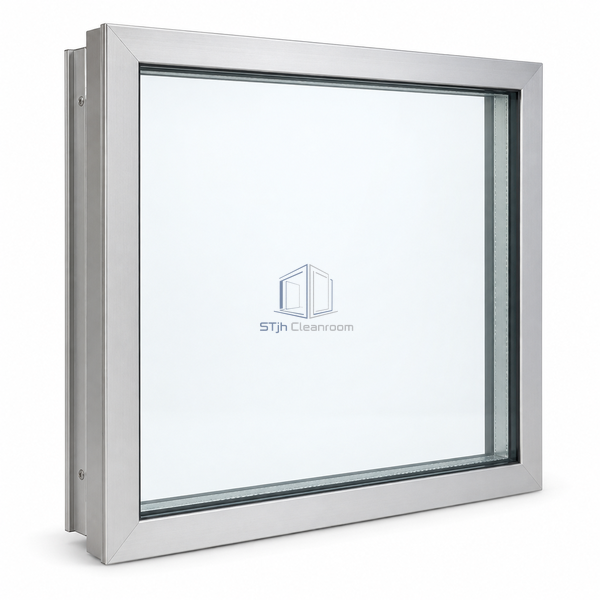

Aluminum-Framed Cleanroom Window On-Panel with Molecular-Sieve Cavity
An aluminum-profile double-glazed window with a 3A molecular-sieve cavity for sandwich-panel installation.
- Direct panel mounting suits prefabricated sandwich-wall construction.
- Three available frame depths cover common cleanroom panel interfaces.
- Molecular sieve dries the enclosed glazing cavity without powered equipment.
Product Introduction
This window is built for direct integration into a cleanroom sandwich panel. An aluminum-alloy perimeter holds the two glazing faces around an enclosed cavity containing 3A molecular sieve. Frame depths of 50, 75 or 100 mm accommodate the corresponding panel thicknesses. The profile-based construction joins the viewing unit to the panel opening as a complete perimeter assembly, while the drying material helps control moisture retained between the panes during normal service.
Key Features
- Direct panel mounting suits prefabricated sandwich-wall construction.
- Three available frame depths cover common cleanroom panel interfaces.
- Molecular sieve dries the enclosed glazing cavity without powered equipment.
Technical Parameters
| Perimeter Material | Aluminum alloy profile |
|---|---|
| Mounting Method | On-panel installation |
| Glazing Arrangement | Dual panes |
| Cavity Type | Enclosed glazing cavity |
| Drying Medium | 3A molecular sieve |
| Frame Depth Options | 50, 75 or 100 mm |
| Host Construction | Cleanroom sandwich panel |
| Viewing Function | Fixed observation |
| Power Requirement | None for passive cavity drying |
| Customization | Opening size and frame depth can be selected for the intended sandwich-panel wall and observation task. |
Applications
- Prefabricated cleanroom sandwich-wall observation openings
- Viewing panels in modular pharmaceutical production partitions
Solutions for Your Application
Residual cavity moisture can interfere with clear observation.
The enclosed perimeter incorporates 3A molecular sieve as a passive drying medium.
Available Options
- 50 mm frame depth
- 75 mm frame depth
- 100 mm frame depth
Planning a Aluminum-Framed Cleanroom Window On-Panel with Molecular-Sieve Cavity specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
