Broad wiping curve
The open radius gives a cloth or cleaning tool a gentler change of direction at the corner than a tight concave detail.
STJH-ALUMINUM-CLEANROOM-COVE-BASE-R75

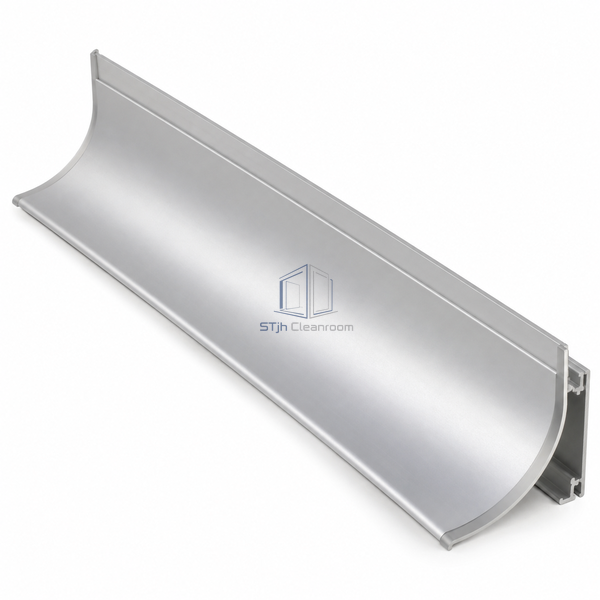

Aluminum Cleanroom Cove Base 75 mm Large-Radius
A broad two-piece cove creates a more open wiping curve at cleanroom junctions.
- Nominal three-inch radius
- Extruded aluminum cover
- Two-piece clip assembly
About This Product
The large-radius version uses an extruded aluminum cover that engages a separately mounted clip. Its approximately 75 mm curve, based on a nominal three-inch radius, reaches farther across the adjoining surfaces than the compact profiles. The broad shape is useful when a room upgrade calls for an accessible transition and the available clearance permits the larger projection.
Key Features
Retrofit-friendly assembly
The mounting clip can be installed at a suitable existing junction before the cover is attached, allowing the work to follow the enclosure layout.
Intersection continuity
Compatible welded three-way assemblies can connect multiple runs without leaving open profile ends at the intersection.
Technical Parameters
| Material | Extruded aluminum |
|---|---|
| Nominal Radius | Approximately 75 mm (3 in) |
| Assembly | Separate cove and mounting clip |
| Face Form | Broad concave profile |
| Clip Location | Fixed to adjoining enclosure surface |
| Attachment | Cove engages extruded clip |
| Project Type | New installation or retrofit |
| Intersection Detail | Welded three-way assemblies available |
| Exposed Surface | Continuous rigid curved face |
| Customization | Available based on the intended application and operating environment. |
Applications
Consider this profile for large modular cleanroom corners and compatible perimeter upgrades where generous clearances are available. Wall and ceiling junctions are typical applications; floor integration should use the appropriate base detail so that the cove does not obstruct drains, door operation or equipment positioning.
Solutions for Your Application
A small corner radius remains difficult to wipe with the chosen cleaning tool.
Use the broader curve where space permits and check access using the actual cleaning method.
A retrofit cove conflicts with nearby fixtures.
Mark the full projection on both adjoining surfaces before selecting clips and corner pieces.
Available Options
Provide the enclosure geometry, preferred visible finish and the points where the run terminates. Matching intersections and attachment details should be planned with the larger radius instead of borrowing accessories from a smaller system.
Planning a Aluminum Cleanroom Cove Base 75 mm Large-Radius specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
