STJH-ALUMINUM-AIR-DUCT-600X300-T10

Aluminum Air Duct 600 x 300 mm 1.0 mm

Medium-width aluminum duct for low-mass distribution branches.

Wide shallow opening uses ceiling height efficiently.
Increased sheet depth supports the broader panel span.

Request a Quote Browse Products

Product Introduction

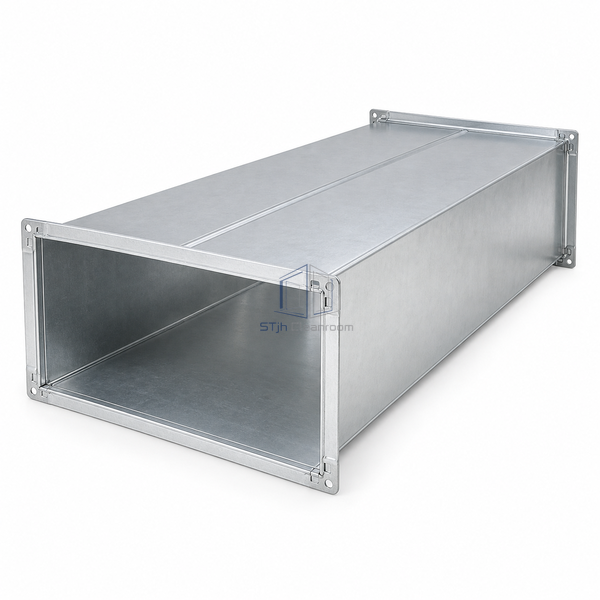

The wider rectangular passage carries air through a 3003-H14 shell with a thicker sheet selection than the compact branch version. Folded seams and flange ends form a practical modular section, while the two-to-one opening suits medium overhead distribution routes.

Key Features

Wide shallow opening uses ceiling height efficiently.
Increased sheet depth supports the broader panel span.

Technical Parameters

Clear Width	600 mm
Clear Height	300 mm
Aluminum Grade	3003-H14
Shell Thickness	Approximately 1.0 mm
Longitudinal Seam	Pittsburgh lockseam
Transverse Connection	TDC-style flange
Metal Surface	Mill finish
Section Design	Single-wall rectangular
Reinforcement	External angle or internal tie-rod options
Customization	Available for the actual medium branch layout and environment.

Applications

Medium clean-air supply routes
Low-mass extract distribution

Solutions for Your Application

Increasing duct width can make a thin panel more flexible.

The thicker sheet selection adds material depth across the wider face.

Connection details must suit modular sections.

Transverse flange ends provide a defined mating interface.

Available Options

Custom reinforcement arrangement
Matching aluminum fittings

Planning a Aluminum Air Duct 600 x 300 mm 1.0 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
