The required room width exceeds the plain-strut configuration.
Added stiffeners extend the system's width range to 5486.4 mm.
STJH-ALL-ALUMINUM-CLEANROOM-T-GRID-STIFFENED-STRUT

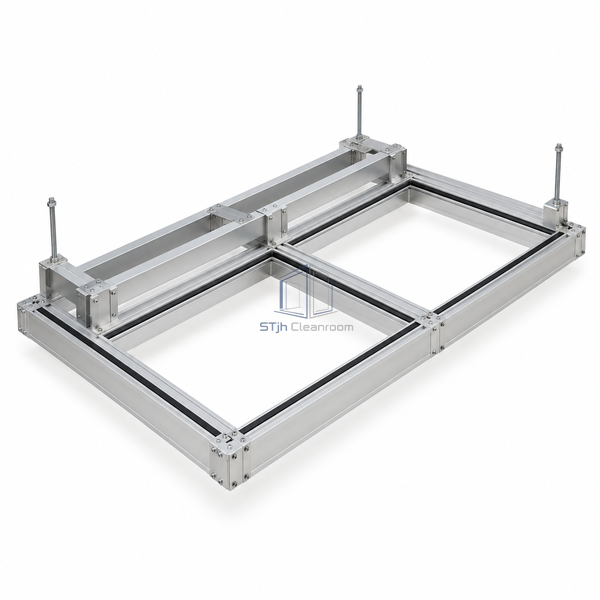

All-Aluminum Cleanroom T-Grid Stiffened-Strut Self-Supporting
Stiffened support struts extend the ceiling across a wider enclosure.
- Reinforcement increases the structural depth available at the support lines.
- The familiar component module remains usable after selecting the stronger support arrangement.
- Clear-anodized framing leaves the aluminum surface exposed without a paint layer.
Product Introduction
Additional stiffeners reinforce the aluminum struts between this system's gasketed T-bar frames. The arrangement retains standard module openings while extending the supported room-width range to 5486.4 mm. Ceiling-to-strut connections bring the prefabricated sections together over the enclosure.
Key Features
- Reinforcement increases the structural depth available at the support lines.
- The familiar component module remains usable after selecting the stronger support arrangement.
- Clear-anodized framing leaves the aluminum surface exposed without a paint layer.
Technical Parameters
| T-Grid Face | 50.8 mm |
|---|---|
| Aluminum Grade | 6063-T5 |
| Surface Finish | Clear anodized |
| Base Strut Section | 50.8 x 101.6 mm |
| Reinforcement | Added strut stiffeners |
| Maximum Room Width | 5486.4 mm |
| Nominal Module Size | 609.6 x 1219.2 mm |
| Module Sealing | Gasketed T-bar ledges |
| Connection | Ceiling-to-strut connectors |
| Customization | Available for room width and the intended ceiling arrangement. |
Applications
- Wider modular manufacturing cleanrooms
- Enclosures needing reinforced support without changing ceiling module sizes
Solutions for Your Application
Changing the support arrangement might require new tile and fixture formats.
The stiffened system retains nominal 609.6 x 1219.2 mm component openings.
Available Options
- Blank ceiling panels
- Filter and lighting arrangements
- Hold-down fittings
Planning a All-Aluminum Cleanroom T-Grid Stiffened-Strut Self-Supporting specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
