All-Aluminum Cleanroom T-Grid Medium-Strut Self-Supporting

Integrated medium-duty struts support a modular ceiling across a compact room.

Support members are integrated between the ceiling modules.
Prefabricated frames reduce the number of loose grid pieces assembled overhead.
The modular openings accept tiles, filtration units and lighting.

Request a Quote Browse Products

Product Introduction

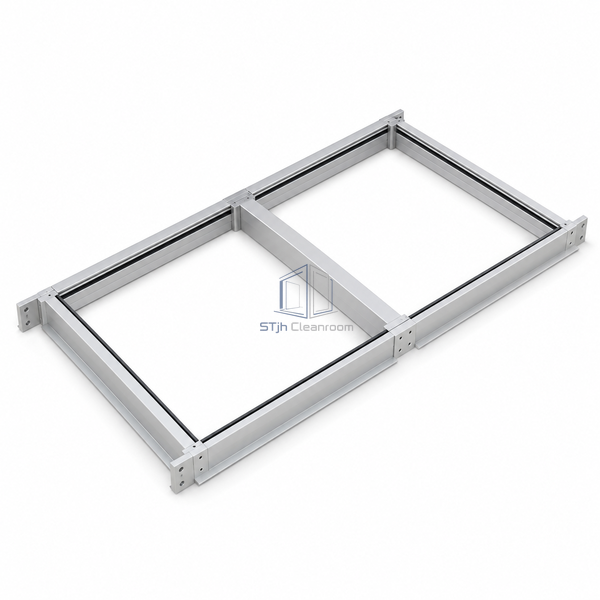

Preassembled T-bar frames connect to 50.8 x 101.6 mm aluminum support struts. The ceiling rests on the enclosure frame and receives standard rectangular components. This medium-strut configuration is intended for room widths up to 4572 mm with limited ceiling loads.

Key Features

Support members are integrated between the ceiling modules.
Prefabricated frames reduce the number of loose grid pieces assembled overhead.
The modular openings accept tiles, filtration units and lighting.

Technical Parameters

Grid Face Width	50.8 mm
Frame Alloy	6063-T5 aluminum
Standard Finish	Clear anodized
Support Strut Section	50.8 x 101.6 mm
Maximum Room Width	4572 mm
Component Module	609.6 x 1219.2 mm nominal
Seal Arrangement	Fully gasketed grid
Primary Support	Enclosure-mounted struts
Assembly Format	Preassembled ceiling frames
Customization	Available for the enclosure layout and selected ceiling components.

Applications

Compact modular cleanrooms inside existing buildings
Small equipment enclosures with a self-supporting ceiling

Solutions for Your Application

The building above offers inconvenient ceiling attachment points.

The integrated struts carry the ceiling across the enclosure frame within this configuration's span.

Many loose grid parts slow installation over a small room.

Preassembled T-bar frames are positioned and connected as modules.

Available Options

Ceiling tile hold-down connectors
Compatible lights and filter modules
Powder-coated frame finish
