Airtight Shut-Off Damper 800 x 755 mm Pneumatic Gas-Tight

Pneumatic shut-off for remotely operated containment branches.

Pneumatic drive suits systems with an instrument-air supply.
A larger near-square opening accommodates medium critical branches.

Request a Quote Browse Products

Product Introduction

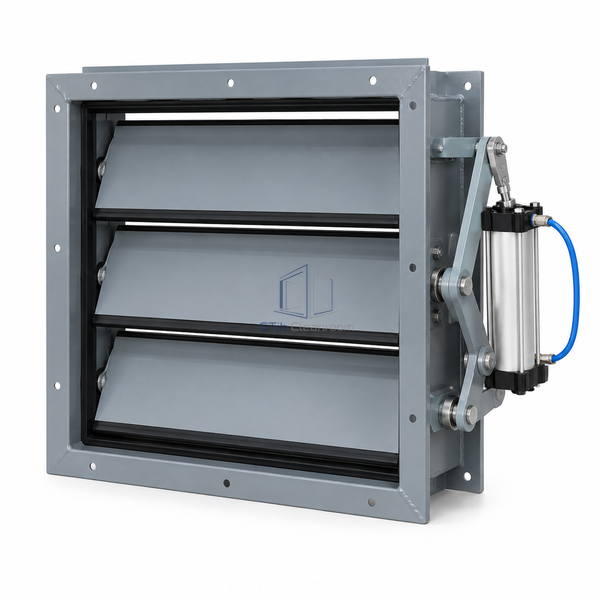

A compressed-air cylinder operates the external toggle linkage on an 800 × 755 mm welded frame. The mechanism converts actuator travel into positive seal compression, providing remote isolation while retaining a mechanically locked final position.

Key Features

Pneumatic drive suits systems with an instrument-air supply.
A larger near-square opening accommodates medium critical branches.

Technical Parameters

Duct Opening	800 × 755 mm
Actuation	Double-acting pneumatic
Air Supply Pressure	6 bar
Air Quality	Filtered compressed air
Casing Material	Powder-coated galvanized steel
Seal	Neoprene foam
Closed-Blade Leakage	Maximum 0.0028 (l/s)/m² at 2000 Pa
Maximum Closing Pressure	5000 Pa
Closure Mechanism	Over-centre mechanical lock
Customization	Pneumatic accessories can suit the intended process and environment.

Applications

Remote laboratory exhaust isolation
Medium containment ventilation shutdown

Solutions for Your Application

The branch is beyond convenient manual reach.

The pneumatic actuator transfers the command to the external linkage.

Loss of supply energy could release seal pressure.

The final over-centre position holds the sealing mechanism mechanically.

Available Options

Solenoid valve
End-position sensing

Planning a Airtight Shut-Off Damper 800 x 755 mm Pneumatic Gas-Tight specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
