STJH-AIRTIGHT-CLEANROOM-DOOR-GASKET-EPDM-LIP

Airtight Cleanroom Door Gasket EPDM Lip-Profile

Form a passive frame seal using an extruded EPDM profile with a flexible contact lip.

A thin contact lip flexes at the sealing face.
Groove installation retains the profile along the frame.
Passive operation needs no air connection or power.

Request a Quote Browse Products

Product Introduction

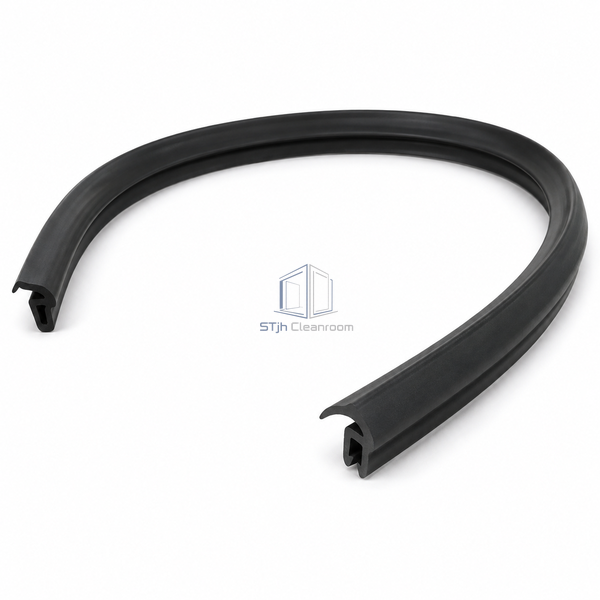

The EPDM gasket is a continuous extrusion intended to sit in a compatible door-frame groove. Its projecting lip bends against the closing leaf, creating contact through elastic deformation rather than an inflated chamber. The profile can be cut and joined to follow the perimeter of the opening. This component is selected by its cross-section and fit with the frame, allowing worn seals to be replaced without changing the complete door assembly.

Key Features

A thin contact lip flexes at the sealing face.
Groove installation retains the profile along the frame.
Passive operation needs no air connection or power.

Technical Parameters

Material	EPDM
Profile	Lip type
Hardness	Shore A 50–70
Manufacturing Form	Extruded profile
Operating Action	Passive compression
Mounting	Door-frame groove
Contact Surface	Flexible projecting lip
Pneumatic Supply	Not required
Component Location	Door perimeter
Customization	Cross-section and length can be tailored to the intended door frame.

Applications

Replacement perimeter seals.
Compression-sealed cleanroom access doors.

Solutions for Your Application

The existing groove requires a particular profile.

Select the matching extrusion cross-section.

Adding pneumatic control would complicate the door.

The EPDM lip works through the leaf's closing pressure.

Available Options

Frame-specific cross-section.
Cut lengths.
Compatible joined corners.

Planning a Airtight Cleanroom Door Gasket EPDM Lip-Profile specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
