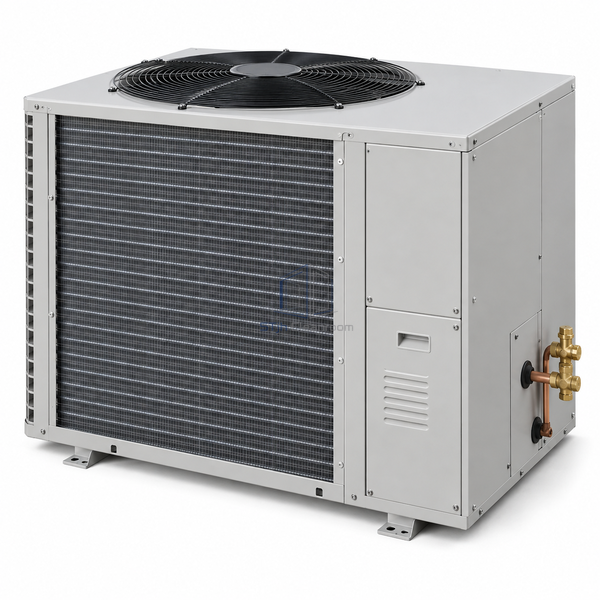

STjh 7.8 kW air-cooled condensing unit with an enlarged coil face and compressor bay on white.

STJH-AIR-COOLED-CONDENSING-UNIT-78KW

Air-Cooled Condensing Unit 7.8 kW

A mid-range 7.80 kW air-cooled condensing unit with a 4 hp scroll compressor and larger coil face than the compact model.

7.80 kW rated duty
4 hp scroll compressor
Expanded condenser face

Request a Quote Browse Products

Product Introduction

The 4 hp physical build produces 7.80 kW at the same referenced low-temperature condition as the smaller unit. Increased compressor displacement and condenser area suit medium pharmaceutical, test or controlled-food storage systems using a remote evaporator.

Key Features

Medium refrigeration output

The larger compressor matches evaporators that exceed the practical duty of the 2 hp package.

Greater air-side capacity

The enlarged coil and fan arrangement remove the additional compressor heat at outdoor conditions.

Service-ready circuit

Packaged refrigerant controls consolidate the compressor and condenser components outside the served space.

Technical Parameters

Cooling Capacity	7.80 kW at the referenced -7 C rating point
Nominal Motor Class	4 hp
Compressor Type	Scroll
Refrigerant Reference	R404A
Condenser Coil	Enlarged air-cooled face
Fan Arrangement	Matched outdoor condenser fan set
Evaporator Connection	Remote DX circuit
Protection	High/low pressure and motor protection as selected
Installation	Outdoor location with clear airflow
Customization	Circuit accessories, fan control and electrical supply can be configured for the intended application and operating environment.

Applications

Medium process refrigeration, pharmaceutical controlled storage, test chambers and clean-support cold rooms.

Solutions for Your Application

The compact 4.3 kW unit cannot pull down the medium cold-room load.Use the 7.80 kW compressor and condenser build after checking the evaporating and ambient design points.

Hot discharge air may recirculate around a larger condenser face.Maintain free intake and discharge clearances and avoid enclosed plant niches.

Available Options

Receiver sizing, fan-speed control, winter kit, pressure switches, service valves, acoustic treatment and remote status contacts are available.
