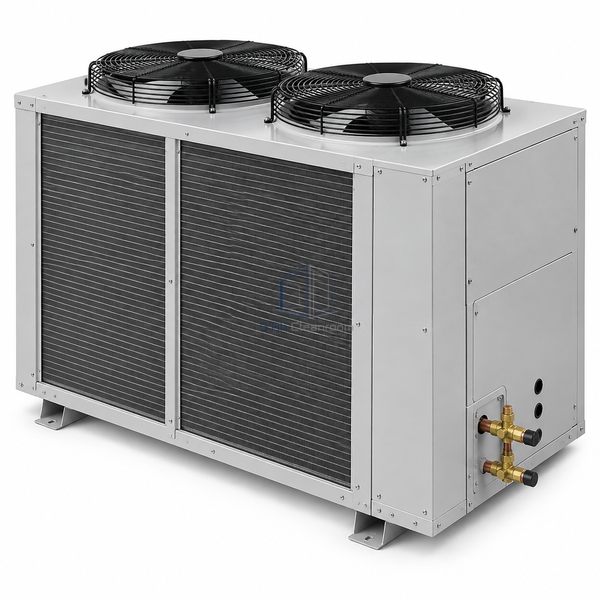

STjh 13.2 kW air-cooled condensing unit with a large twin-fan cabinet and expanded coil on white.

STJH-AIR-COOLED-CONDENSING-UNIT-132KW

Air-Cooled Condensing Unit 13.2 kW

The largest selected air-cooled condensing unit, delivering 13.20 kW with a 7.5 hp scroll compressor and increased fan capacity.

13.20 kW rated capacity
7.5 hp compressor class
Large condenser coil and fan package

Request a Quote Browse Products

Product Introduction

This 7.5 hp package reaches 13.20 kW at the documented rating point and uses the largest condenser cabinet in the selected set. Greater coil area and fan airflow serve higher-capacity clean-process cold rooms and temperature-controlled storage.

Key Features

High local refrigeration duty

The largest compressor supports substantial remote evaporator loads without moving to a central rack.

Expanded heat rejection

Increased coil surface and fan capacity manage the higher condensing load.

Packaged field connection

The assembled outdoor unit groups core refrigeration controls for connection to the selected evaporator circuit.

Technical Parameters

Cooling Capacity	13.20 kW at the referenced -7 C rating point
Nominal Motor Class	7.5 hp
Compressor	Scroll
Refrigerant Reference	R404A
Condenser	Large air-cooled coil
Fan Capacity	Increased outdoor airflow
Remote Evaporator	Field-connected DX coil
Refrigeration Controls	Pressure and compressor protection package
Installation	Outdoor ventilated equipment area
Customization	Receiver, controls and ambient accessories can be configured for the intended application and operating environment.

Applications

Higher-capacity pharmaceutical cold rooms, clean-process refrigeration, controlled storage and large remote DX evaporators.

Solutions for Your Application

The medium condensing unit lacks pull-down capacity for the larger insulated room.Apply the 13.20 kW build using the final product load, infiltration and design temperatures.

The larger fan package could discharge heat into nearby air intakes.Position the condenser to prevent recirculation and maintain separation from clean-facility outdoor-air intakes.

Available Options

Low-ambient operation, liquid receiver, oil management accessories, service valves, fan controls, enclosure coating and monitoring contacts can be selected.
