STJH-ADJUSTABLE-LOUVER-AIR-GRILLE-600X300-DD

Adjustable Louver Air Grille 600 x 300 mm Double-Deflection

Two-bank aluminum grille for independent horizontal and vertical supply-air steering.

Crossed blade banks provide two-plane adjustment.
Wide opening serves medium distribution branches.

Request a Quote Browse Products

Product Introduction

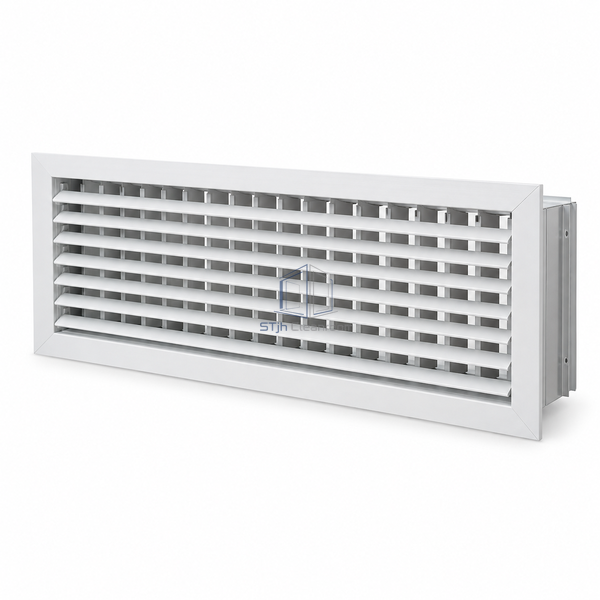

The 600 x 300 mm grille adds a perpendicular rear bank behind its front airfoil blades. This wider terminal can shape both axes of the discharge pattern while retaining a clean rectangular wall interface.

Key Features

Crossed blade banks provide two-plane adjustment.
Wide opening serves medium distribution branches.

Technical Parameters

Opening Size	600 x 300 mm
Deflection Type	Double
Blade Banks	Two, perpendicular
Blade Spacing	19.05 mm (3/4 in)
Frame	Extruded aluminum
Louvers	Individually adjustable aluminum airfoils
Air Service	Supply
Volume Control Option	Steel or aluminum opposed-blade damper
Surface Finish	White paint option
Customization	Blade orientation and frame details can suit the intended application.

Applications

Medium wall supply terminals
Production support-area ventilation

Solutions for Your Application

Air must be aimed both away from a wall and across the room.

Adjust the front and rear banks independently to establish the two directional components.

Available Options

Rear opposed-blade damper
Horizontal or vertical front blades

Planning a Adjustable Louver Air Grille 600 x 300 mm Double-Deflection specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
