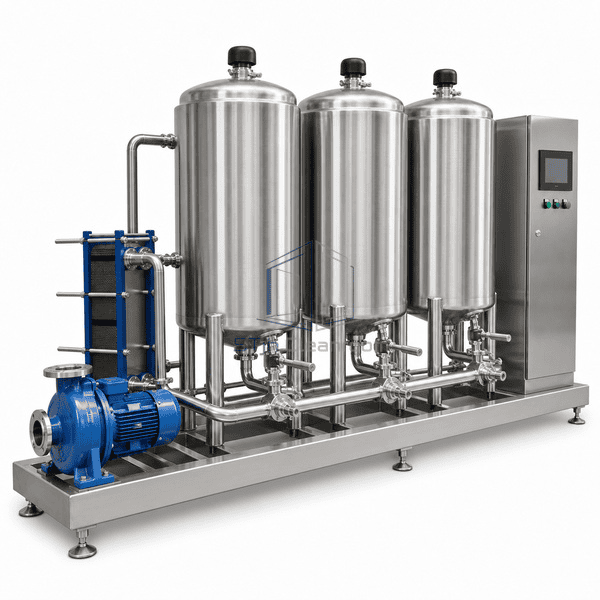

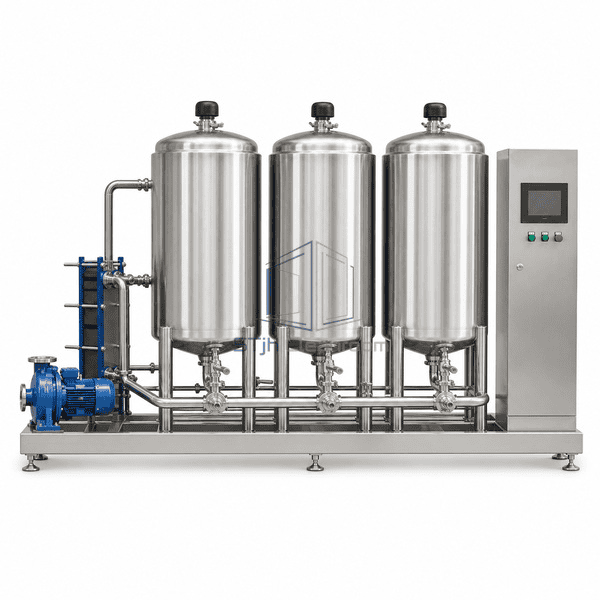

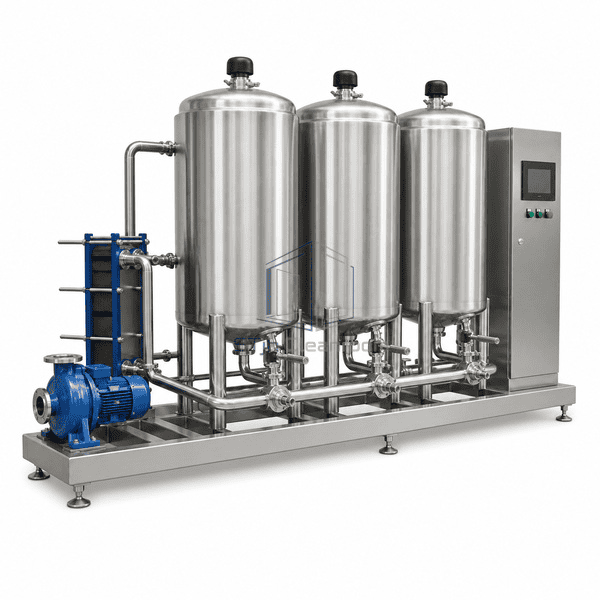

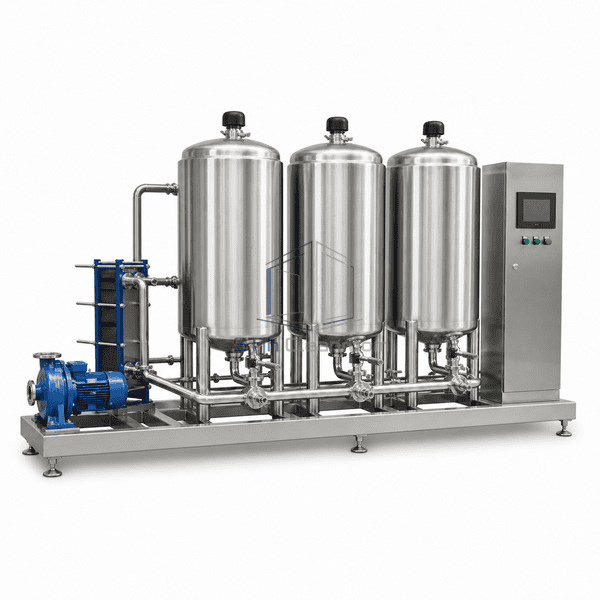

Clean-in-place system three-quarter view with three solution tanks

클린룸 유틸리티 시스템

Clean - In - Place 시스템

A three-tank automated cleaning skid that prepares, heats, circulates and recovers rinse and detergent solutions through hygienic process equipment.

Automated recipe-controlled cleaning
Three segregated solution tanks
Heated sanitary circulation loop

견적 요청 제품 찾아보기

상품 소개

The clean-in-place system stores rinse water and detergent solutions in dedicated stainless tanks, heats the selected medium through a plate heat exchanger and circulates it through connected process equipment without disassembly. Return temperature, conductivity and flow signals support phase changeover and repeatable recovery or drain decisions.

주요 기능

Three segregated stainless tanks

Sanitary centrifugal circulation pump

Plate heat exchanger heating

Automated valve manifold

Temperature and conductivity monitoring

Recipe-based sequencing

Detergent recovery routing

Integrated HMI control

응용 프로그램 솔루션

Effective CIP depends on sufficient turbulence, correct detergent concentration, controlled temperature, complete surface wetting and reliable phase separation.

Low return velocity leaves product residueSize the circulation pump and return path for turbulent cleaning flow at the connected equipment.

Detergent strength varies between cyclesUse conductivity feedback and controlled water or concentrate make-up.

Cleaning phases mix and waste utilitiesApply return conductivity and temperature logic to route each phase to recovery or drain.

Cold solution cleans slowlyHeat the circulating medium through a sanitary plate heat exchanger with regulated utility flow.

일반적인 응용 프로그램

Bioreactor and vessel cleaningHygienic process pipingFilling and transfer equipmentPlate heat exchangersFood and beverage process lines

기술 매개변수

Tank volume, pump duty, heater area, number of circuits and automation are selected for connected equipment and cleaning recipes.

핵심 재료	316L stainless steel solution tanks and hygienic product-contact piping
패널 두께	Tank wall typically 2.0–5.0 mm
유효 폭	Skid width typically 1500–3500 mm
최대 길이	Complete skid length typically up to 6000 mm
강철 면면 두께	컨트롤 인클로저 및 스키드 시트 일반적으로 1.5-3.0mm
코어 밀도	316L 스테인리스 밀도 대략 8000 kg/m³
열전도도 (Thermal Conductivity)	316L 스테인리스 주위 온도에서 대략 15 W/(m · K)
표면 마무리	Polished tank and piping interiors with satin external stainless finish
접합 유형	Orbital-welded sanitary piping with clamp-connected valves, instruments and plate heat exchanger
사용자 정의	의도된 응용 프로그램 및 운영 환경에 따라 사용할 수 있습니다.

사용 가능한 옵션

One to five solution tanksSingle or multiple cleaning circuitsElectric or steam heatingDetergent dosingConductivity analyzerReturn recovery moduleRemote recipe management
