Single-Person Cleanroom Air Shower
A compact interlocked entry chamber that helps dislodge loose particles from one gowned operator with directional filtered-air jets before clean-side access.
Cleaner Entry for People & Cargo
Cleanroom Air Showers
Help reduce loose-particle carryover before people and materials enter your cleanroom. Explore personnel and cargo air showers with capacities, door arrangements and construction options to fit your entry route and daily traffic.
15enclosed air shower models
Personnel EntrySingle-person, two-person, multi-person and tunnel configurations.
Cargo TransferChambers and door systems sized around trolleys or wheeled loads.
Offset Traffic RouteL-shaped, U-shaped and three-door arrangements for constrained layouts.
Special EnvironmentIonizing, explosion-resistant and cold-room models require project review.
How to Select a Cleanroom Air Shower
Start with what enters the chamber and how it moves through the building, then compare capacity, doors, materials and special operating constraints.
| Buyer requirement | Product direction | Why it helps |
|---|---|---|
| Compact personnel entrance | Single-person air shower | Keeps the entry footprint focused on one operator at a time. |
| Higher shift-change throughput | Two-person, multi-person or tunnel layout | Reduces entry queues by increasing usable capacity or cleaning length. |
| Trolleys or wheeled loads | Cargo air shower | Provides door and chamber geometry intended for material transfer. |
| Offset corridor | L-shaped or U-shaped layout | Routes entry around existing walls and circulation constraints. |
| Automated material flow | Sliding-door or roll-up-door cargo model | Supports wider or more automated openings. |
| High-cleanability environment | SUS 304 construction | Offers a durable, cleanable metal surface when suitable for the project. |
| Static-sensitive operation | Ionizing air shower | Adds ionization where charge control is required. |
| Hazardous or cold environment | Purpose-designed special model | Requires project-specific component, safety and operating review. |
Compare 15 Air Shower Models
Find an air shower that fits your personnel or cargo flow. Compare capacity, layout and construction, then add suitable models to your inquiry list for a tailored quote.
15 models shown
Double-Sided Single-Person Air Shower
A one-operator entry chamber that directs filtered air from both sidewalls during a timed garment-dedusting cycle.

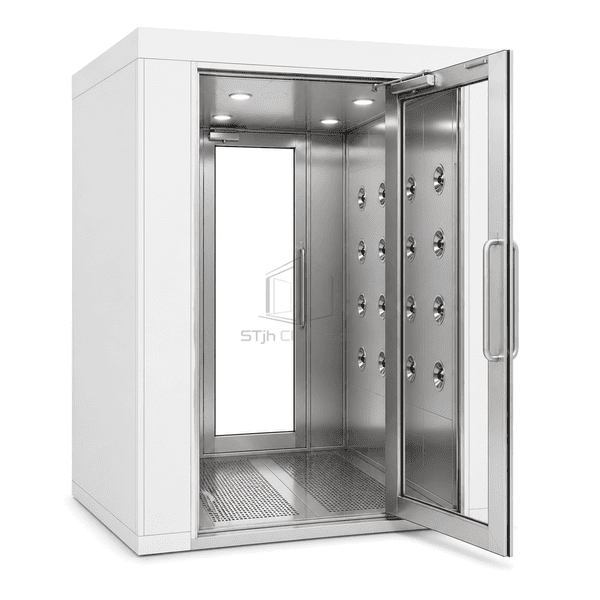

Two-Person Cleanroom Air Shower
A two-operator batch-entry air shower with a coordinated shower sequence and nozzle positions arranged around the selected standing layout.
Multi-Person Cleanroom Air Shower
An extended personnel air shower for organized group entry, with the chamber layout, jet zones and batch sequence selected together.
Cargo Cleanroom Air Shower
A material-entry air shower for exposed load surfaces, with passage clearances and door operation selected around the actual handling equipment.
Walk-Through Cleanroom Air Shower Tunnel
An extended personnel-entry passage with selectable tunnel sections and an operating sequence matched to how people enter, shower and leave.
L-Shaped Cleanroom Air Shower
A right-angle personnel air shower that connects adjacent entry and exit routes where an inline chamber does not suit the room layout.

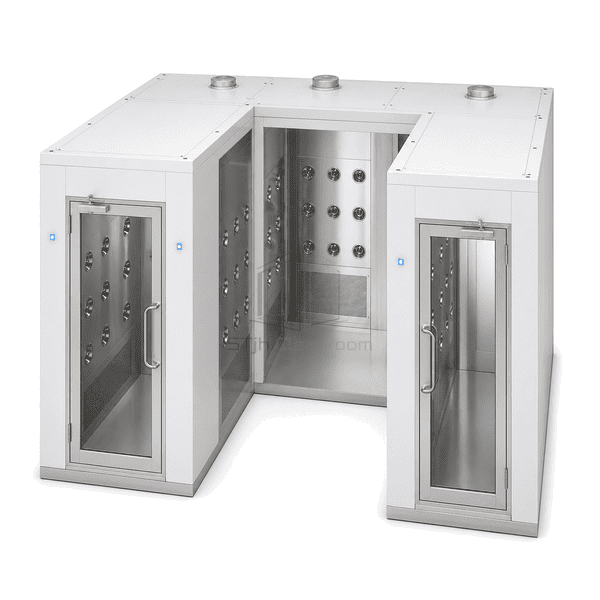

U-Shaped Cleanroom Air Shower
A return-route personnel air shower for facilities where the gowning entrance and clean-side connection must share one enclosure face.
Three-Door Cleanroom Air Shower
A branched personnel air shower with three controlled doorways, allowing one gowning entrance to serve two clean-area routes.

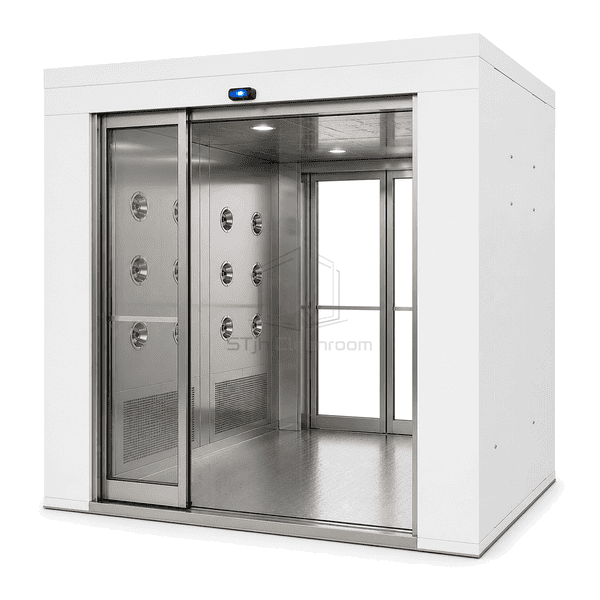

Automatic Sliding-Door Cleanroom Air Shower
A personnel air shower with powered sliding doors and selectable touch-free activation, reducing routine handle contact at cleanroom entry.
High-Speed Roll-Up Door Cargo Air Shower
A cargo-transfer air shower with overhead curtain travel for busy pallet and trolley entrances where conventional door leaves would obstruct the approach.
SUS 304 Stainless Steel Air Shower
A stainless personnel air shower for entrances where frequently wiped chamber surfaces and cleaning-agent compatibility matter alongside filtered garment blow-off.
Explosion-Resistant Cleanroom Air Shower
A special-purpose model requiring review of the hazardous-area conditions and components.
Ionizing Cleanroom Air Shower
A two-door personnel air shower combining filtered garment blow-off with a selected ionizing module to address electrostatic particle attraction at cleanroom entry.

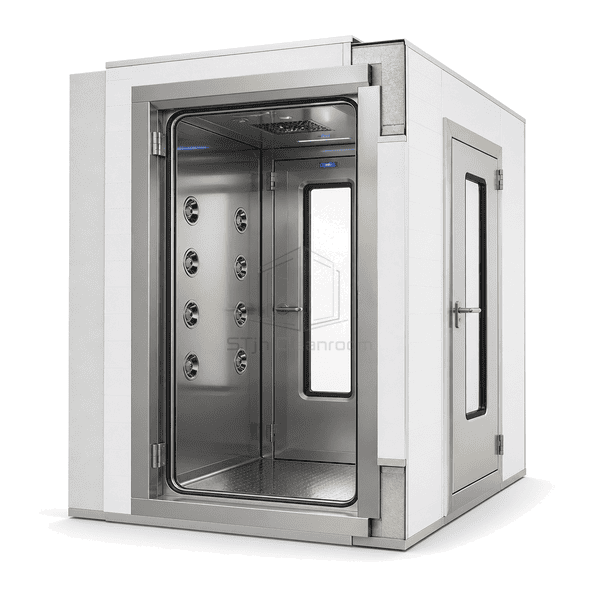

Low-Temperature Cold-Room Air Shower
A special model for low-temperature entry conditions with project-specific component review.
No models match every selected filter.
Reset one or more filters to compare a broader group.
Reset one or more filters to compare a broader group.
Contamination-Control Role
Reduce Particle Carryover at Your Cleanroom Entrance
High-velocity filtered air helps remove loose particles from garments or load surfaces before the door sequence releases entry to the next zone.
An air shower is not a sterilizer. It should be selected as one part of a wider entry process that can include gowning, hand hygiene, cleaning, pressure control and operating procedures.
Entry queues during shift changesCompare multi-person and tunnel layouts instead of sizing from one operator only.
Trolleys cannot clear a personnel chamberSelect cargo geometry, suitable doors and a transfer-friendly floor path.
A straight-through chamber conflicts with the buildingEvaluate L-shaped, U-shaped or three-door routes.
Door opening interrupts the cleaning sequenceCoordinate interlock logic and door configuration with the intended traffic flow.
Static-sensitive products remain vulnerableEvaluate whether an ionizing configuration is appropriate for the application.
Information needed for an air shower quote
- Personnel or cargo use
- Entry frequency and number of users or loads
- Clear opening and chamber dimensions
- Traffic path and door arrangement
- Construction material and cleaning method
- Available power and control interfaces
- Special environmental constraints
- Destination and project stage
Products commonly planned around the entry
Before choosing an air shower model
No. An air shower is intended to remove loose surface particles with filtered high-velocity air. It does not sterilize people or materials and does not replace cleaning, gowning or process controls.
Consider peak entry demand, shift changes, the number of users or loads per cycle and the available footprint. A larger chamber or tunnel can help when queues would otherwise interrupt operations.
Use a cargo-oriented configuration when trolleys, carts or wheeled loads must pass through. The clear opening, chamber floor, doors and traffic path should be coordinated around the largest intended load.
Many configurations can be adapted around the intended route, opening, construction and operating environment. Final availability should be confirmed against the project requirements.
Ready to compare the right air shower configuration?
Add one or more models, adjust quantities in the inquiry list and include your entry layout, load size and operating conditions.
