Positive-pressure aseptic isolator with sealed glove-access chamber

Оборудование для ламинарного потока и ограничения

Асептический изолятор положительного давления

A sealed product-protection isolator that maintains filtered positive pressure around sterile operations and keeps room air outside the process chamber.

Positive Product-Protection Pressure
Unidirectional First Air
Closed Glove Manipulation
Aseptic Transfer Interfaces

Запрос котировки Просмотреть продукты

Введение продукции

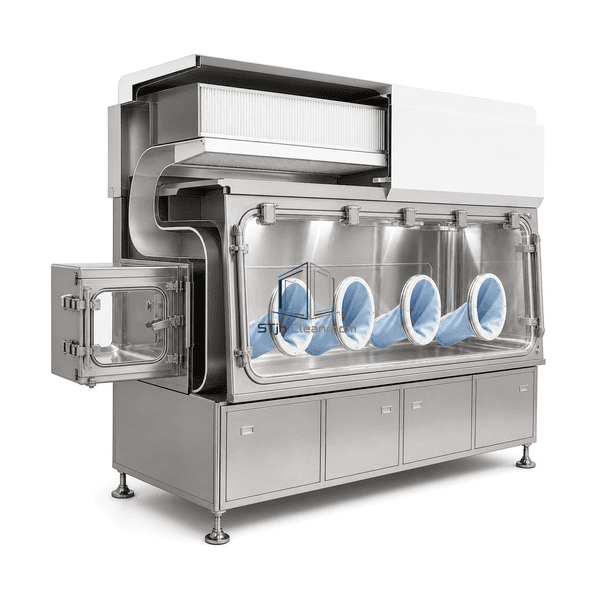

The positive-pressure aseptic isolator maintains the process chamber above the surrounding room pressure so leakage direction is outward after filtration. A ceiling HEPA supply creates unidirectional air over critical operations, and glove ports provide manipulation without opening the chamber. Materials move through bio-decontamination hatches, rapid transfer ports or compatible sterile connections. The design focuses on sterile product protection and is not used as a negative-pressure hazardous-material barrier unless specifically engineered for that combined risk.

Основные характеристики

Positive filtered pressure prevents untreated room air from entering through small leaks.

A full chamber diffuser delivers first air over open sterile product locations.

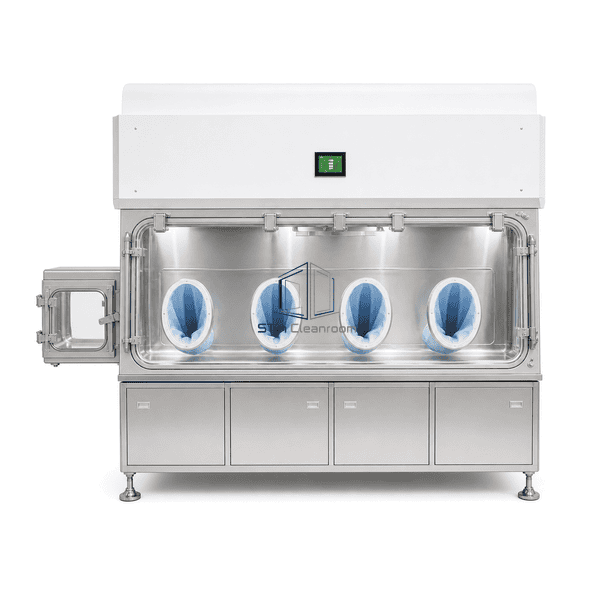

Glove access keeps operators physically separated from the aseptic zone.

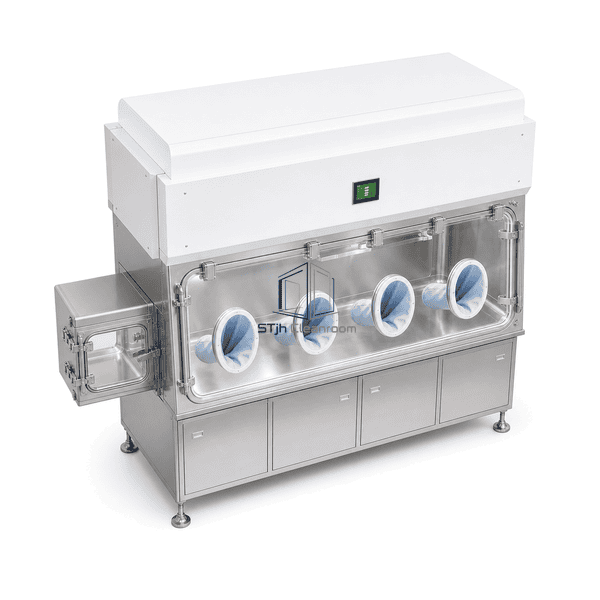

Closed transfer interfaces protect supplies during ingress and finished items during egress.

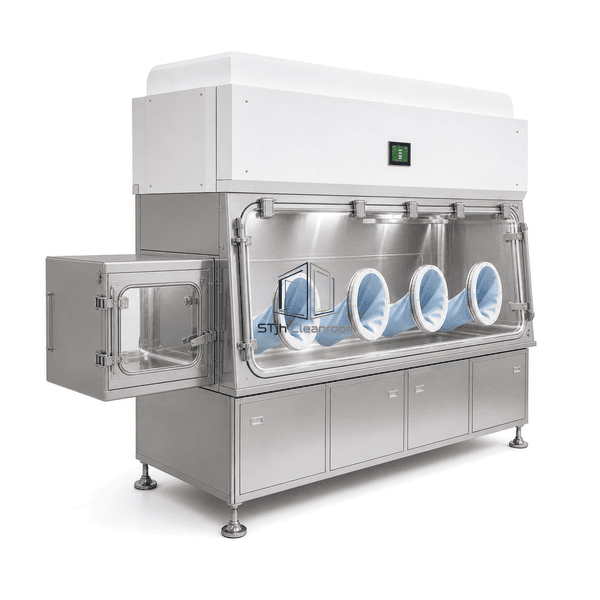

Pressure-hold and glove-test connections support barrier integrity management.

Решения для вашего приложения

Product protection depends on positive pressure, clean transfer and unobstructed first air remaining coordinated throughout operation.

Room air enters during material loading.Interlocked transfer chambers and rapid ports separate loading from the main chamber.

Equipment blocks first air over open sterile items.Diffuser sections and internal supports are arranged around the critical process locations.

A glove leak allows direct operator contact with the chamber.Replaceable glove rings and integrity-test ports support planned glove management.

A positive chamber is assumed to contain hazardous powders.The product-protection purpose and pressure direction are clearly distinguished from containment isolators.

Типичные приложения

Sterile component assemblyAseptic preparationOpen product protectionSmall-batch sterile manufacturing

Технические параметры

Typical configurable construction ranges for a positive-pressure aseptic isolator are listed below.

Основной материал	Welded SUS316L aseptic chamber with laminated safety glass and CSM or butyl glove assemblies
Толщина панели	50-100 mm double-skin chamber and fan-filter sections
эффективная ширина	1200-5000 mm usable aseptic process width
Максимальная длина	Общая длина изолятора до 8000 мм
Толщина линий стали	Раковина камеры 2,0-3,0 мм СУС316Л; кожи обслуживания 1,2-1,5 мм
Плотность ядра	Приблизительно 8000 кг/м³ для материала камеры SUS316L
Теплопроводимость	14-16 Вт/(м · К) для аустенитной нержавеющей стали
Поверхностная отделка	Electropolished SUS316L with welded radiused corners and clear viewing panels
Объединенный тип	Pressure-tight welded chamber with sealed glove rings, gasketed transfer doors and clamped HEPA filter frames
Customization	Доступно в зависимости от предполагаемого применения и операционной среды.

Доступные варианты

Комплексная био-обеззараживание паровПорты быстрой передачиEnvironmental monitoring portsSingle- or multi-chamber configuration

Planning a Positive-Pressure Aseptic Isolator specification?

Отправьте нам ваши габариты, условия монтажа, целевые показатели производительности и требуемую отделку поверхности.
