Industry-Specific Cleanroom Equipment
Sterile Garment Cabinet
A HEPA-filtered stainless wardrobe that protects cleaned coveralls and gowning accessories from particle deposition before use.
- HEPA-Filtered Vertical Airflow
- Sealed Double Glass Doors
- Eight-Hanger Storage Rail
- Perforated Shoe Shelf
Product Introduction

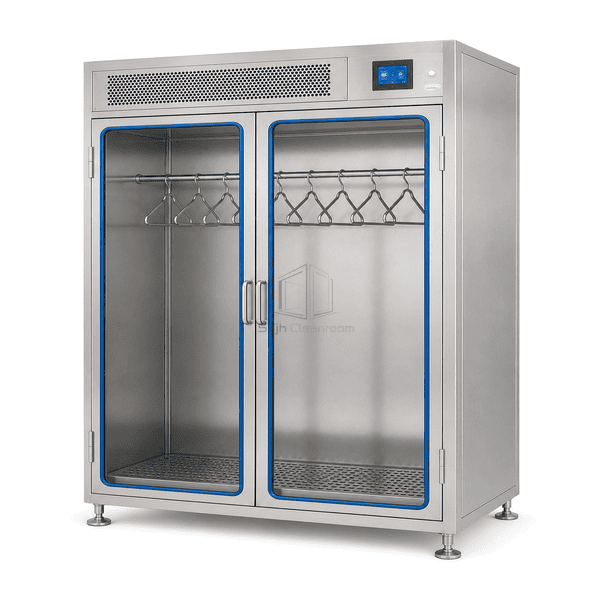

The sterile garment cabinet creates a continuously flushed storage zone for cleanroom apparel. Air from the top fan-filter plenum moves downward across the hanging rail and exits through the perforated lower shelf area, reducing stagnant pockets around stored garments. Two gasketed glass doors provide clear inventory visibility, while the stainless interior supports routine wipe-down in gowning rooms.
Key Features

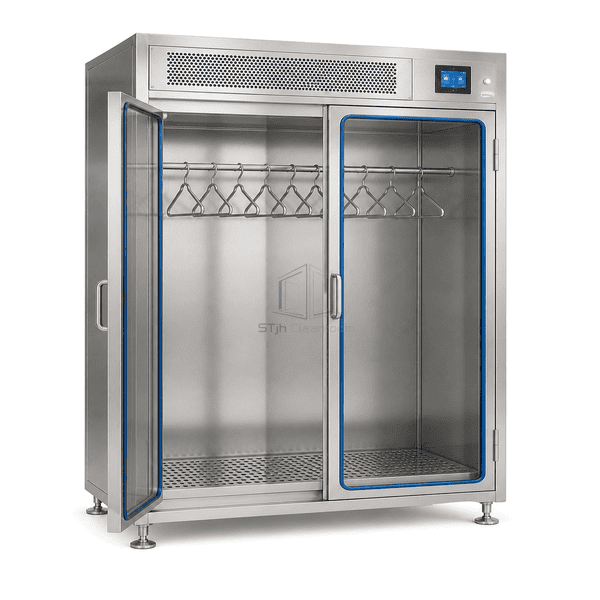

Two blue-gasketed glass doors limit uncontrolled room-air entry during storage.

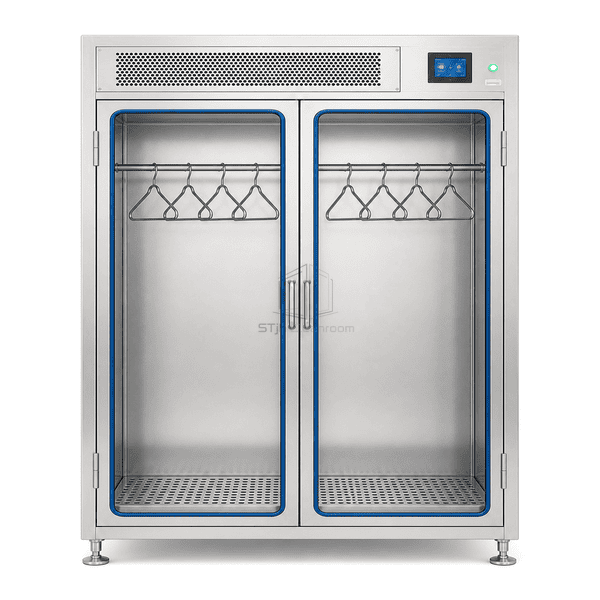

A full-width stainless rail organizes up to eight spaced garment hangers.
The perforated lower shelf separates footwear while preserving vertical airflow.
Solutions for Your Application
Freshly laundered garments can collect particles or become disorganized while waiting in an ordinary open wardrobe.
Room particles settle on clean garments between laundering and use.Continuous HEPA-filtered downflow flushes the enclosed storage zone.
Opening an opaque cabinet makes inventory checks disruptive.Full-height glass doors allow operators to confirm garment availability before access.
Closely packed garments obstruct air circulation.A long rail and evenly spaced hangers support separation around each item.
Footwear stored on a solid base interrupts downward flow and cleaning.A removable perforated lower shelf supports shoes while maintaining an airflow path.
Typical Applications
Cleanroom gowning roomsSterile coverall storagePharmaceutical changing areasMedical-device clean apparel staging
Technical Parameters
Typical configurable construction values for a HEPA-filtered sterile garment cabinet are listed below.
| Core Material | 304 stainless-steel double-skin cabinet with safety-glass doors and HEPA fan-filter module |
|---|---|
| Panel Thickness | 30-60 mm cabinet and filter-plenum sections |
| Effective Width | 900-1500 mm clear hanging width |
| Maximum Length | Up to 1800 mm overall cabinet width |
| Steel Facing Thickness | 1.0-1.5 mm stainless cabinet facing |
| Core Density | 35-45 kg/m³ for insulated double-skin sections |
| Thermal Conductivity | 0.035-0.045 W/(m·K) for insulated cabinet sections |
| Surface Finish | Satin stainless interior and exterior with smooth cleanable corners |
| Joint Type | Sealed double-skin cabinet seams with blue-gasketed hinged glass doors |
| Customization | Available based on the intended application and operating environment. |
Available Options
Alternative hanging-rail and shelf layoutsDifferential-pressure filter monitoringPowder-coated steel or stainless constructionSingle-door and pass-through configurations
Planning a Sterile Garment Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
