Personnel and Material Decontamination Equipment
Cleanroom Pass-Through Storage Cabinet

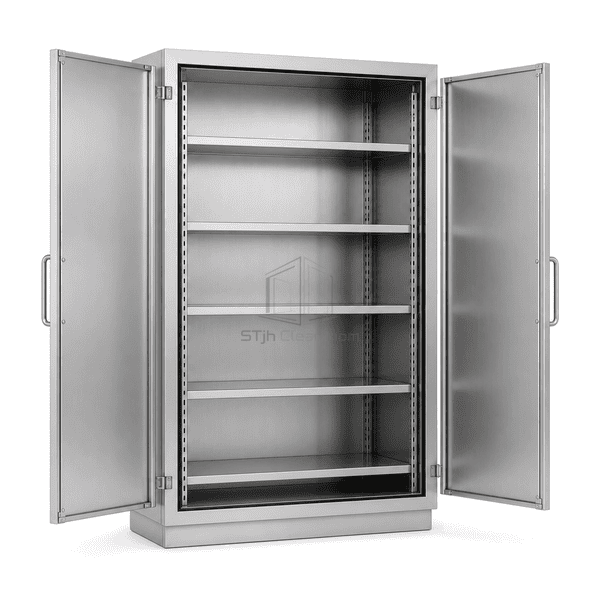

A full-height, double-door cabinet that stages packaged supplies on adjustable shelves between two controlled rooms.
- Full-height transfer volume
- Adjustable stainless shelves

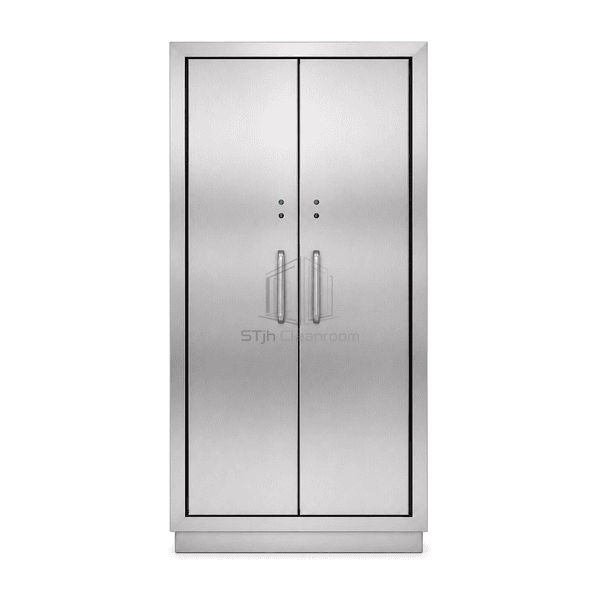

- Opposed interlocked doors
- Floor-supported construction
Product Introduction
This Cleanroom Pass-Through Storage Cabinet turns a wall boundary into an organised restocking point for boxed consumables, trays and prepared materials. The cabinet's removable shelf system can be set for several small batches or cleared for taller containers. Interlocked doors maintain separated loading and collection sides, while the floor-supported cabinet body accommodates more stored material than a compact wall pass box.
Key Features

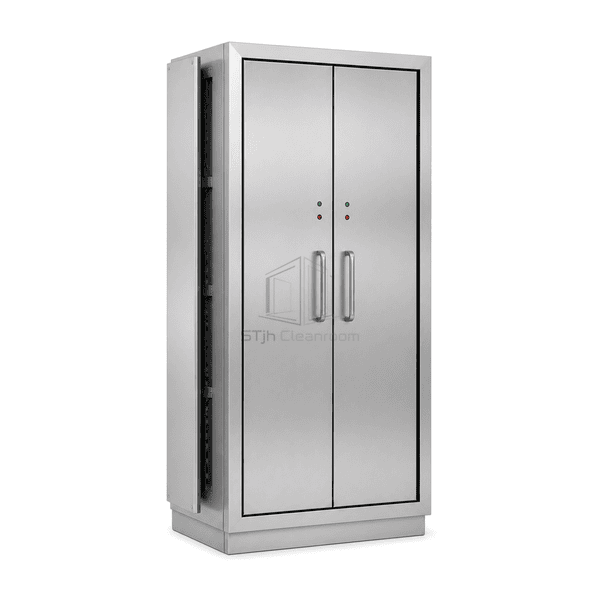

Shelf rails permit the storage layout to be changed without altering the cabinet body.
Solid or perforated shelf choices can suit different packages and wiping practices.
A reinforced base supports regularly loaded transfer volumes.

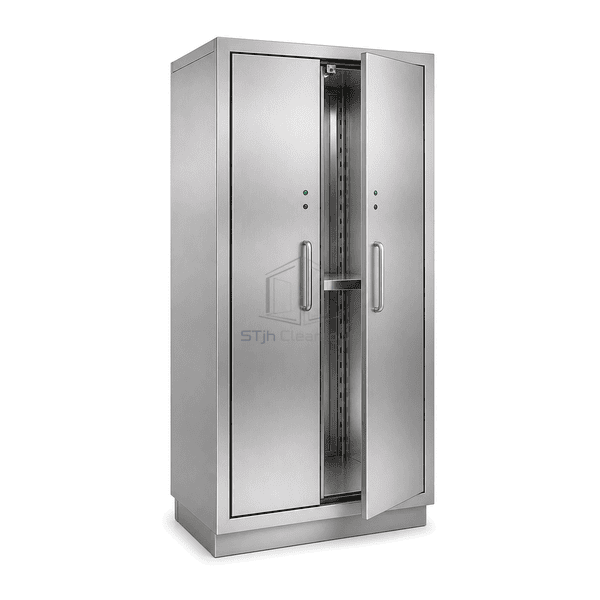

Opposing doors can be interlocked to separate loading from clean-side retrieval.
Solutions for Your Application
Facilities that transfer an entire shift's supplies need more volume and better organisation than a small pass box can provide.
Bulk cartons and several trays require repeated small-box transfers.The tall cabinet provides a larger vertical staging volume with configurable shelf positions.
Different supply batches are mixed on one open surface.Multiple shelf levels create separate loading zones inside the cabinet.
Frequent loading places substantial weight on a wall-mounted unit.A floor-supported base carries the stored load directly to the floor.
Both teams may open their side while replenishment is underway.The interlock sequence coordinates the loading and collection doors.
Typical Applications
Pharmacy consumable restockingMedical-device component stagingClean garment transferPackaged media storageLaboratory container replenishment
Technical Parameters
The table gives selectable common reference configurations for a full-height pass-through storage cabinet, not measured data for one fixed STjh model. The reference arrangement is a floor-supported stainless steel cabinet with adjustable shelves and opposing interlocked doors. It is static storage without a fan or filter module; material, shelving and door upgrades are optional.
| Cabinet Material | AISI 304 stainless steel; AISI 316 stainless steel optional |
|---|---|
| Overall Dimensions (W × D × H) | 1000 × 600 × 2000 mm common full-height reference |
| Surface Finish | Brushed stainless steel, commonly No. 4 finish |
| Shelving | Height-adjustable, removable stainless steel shelves |
| Door Arrangement | Opposing full-height hinged doors |
| Door Interlock | One-side-at-a-time access; electronic interlock available |
| Storage Configuration | Multiple shelf levels for packaged supplies and trays |
| Base and Installation | Floor-supported through-wall cabinet with perimeter trim |
| Optional Fittings | Additional shelves, shelf dividers and glazed doors |
| Customization | Available based on the intended application and operating environment. |
Available Options
Solid or perforated shelvesAdditional shelves and dividersGlazed full-height doorsAISI 316 stainless steel
Selection and Installation
Start with the number of packs held between replenishment rounds, their dimensions and their combined weight on each shelf. Choose shelf spacing to leave hand clearance above the tallest pack, and keep heavier items at comfortable lower levels. Overall cabinet width and height are different from the usable opening and shelf area.
The base must carry the loaded cabinet, while the perimeter trim closes the gap at the wall. Allow the full door swing on both sides and enough aisle space to remove a shelf for cleaning. Specify the interlock type, release sequence and electrical supply if electronic locking is selected.
Use this cabinet for enclosed staging and two-sided restocking; filtration or an air-purge cycle is a separate equipment choice. When only a few documents or small packs pass at a time, a compact transfer hatch uses less wall space.
