Cleanroom shoe sterilizer three-quarter main view

클린룸 청소, 소독 및 소독

클린룸 신발 살균기

A compact walk-on footwear hygiene station that cleans shoe soles with rotating brushes and applies a controlled disinfectant solution before personnel enter clean areas.

Sensor-activated brushes remove soil from footwear soles
Metered disinfectant wetting supports repeatable hygiene steps
Stainless walk-on platform fits controlled entry routes

견적 요청 제품 찾아보기

상품 소개

This cleanroom shoe sterilizer combines mechanical sole cleaning with compatible disinfectant application in one compact station. The stainless housing, removable brushes, drainable tray, adjustable dosing, and sensor control support routine cleaning. It is intended for installed entry procedures and does not replace facility floor cleaning or footwear controls.

주요 기능

Twin rotating nylon sole brushes

Stainless-steel walk-on housing and grid

Automatic presence or hand-contact activation

Adjustable disinfectant dosing pump

Removable brush rollers and debris tray

Anti-slip entry and exit surfaces

Stable stainless handrails

Dry-brush or wet-disinfection configuration

응용 프로그램 솔루션

Footwear can track particles and microorganisms across gowning boundaries. Passive mats may be bypassed or lose effectiveness as they load, so a forced, maintainable entry step is often preferred.

How is use encouraged at the entry point?The guided platform and handrail place the cleaning step directly in the personnel route, with automatic activation during passage.

Can brushes be cleaned easily?Tool-free removable rollers and a lift-out tray allow routine wash-down and debris removal.

How is chemical use controlled?An adjustable pump meters compatible solution to the brushes, while wet or dry operation can be selected for the site procedure.

Is the walking surface safe?Anti-slip grating, stable rails, controlled brush speed, and a level installation support secure passage.

일반적인 응용 프로그램

Pharmaceutical cleanroom entrancesFood-processing hygiene barriersLaboratories and animal facilities의료기기 제조Dust-controlled workshopsGowning-room access routes

기술 매개변수

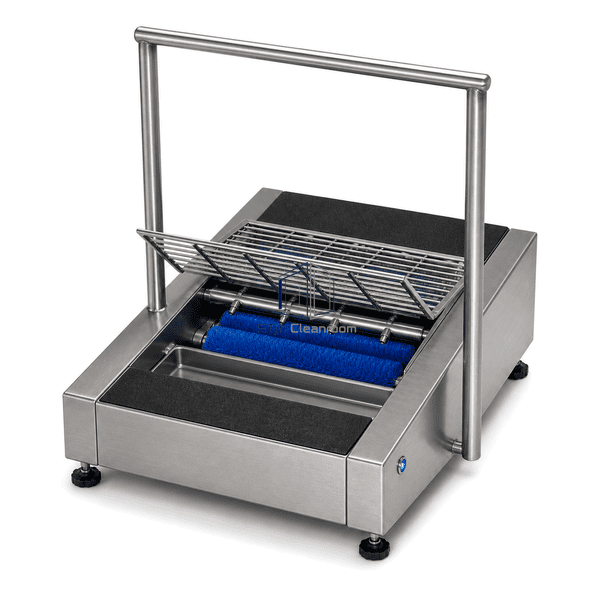

Two horizontal brush rollers rotate beneath an open stainless walking grid. An approach or hand-contact sensor starts the motor and dosing circuit, while a removable collection tray captures liquid and debris. Handrails provide stability during use.

핵심 재료	304 stainless-steel housing with replaceable nylon brush rollers
패널 두께	20–40 mm reinforced platform sections
유효 폭	700–1100 mm walking width
최대 길이	850–1600 mm overall station length
강철 면면 두께	1.0-1.5mm 스테인레스 스틸
코어 밀도	35–50 kg/m³ sealed platform insulation where fitted
열전도도 (Thermal Conductivity)	0.030–0.040 W/(m·K) for optional insulated sections
표면 마무리	Brushed stainless steel with anti-slip walking grid
접합 유형	Welded hygienic housing seams with removable brush shafts and drainable tray connections
사용자 정의	의도된 응용 프로그램 및 운영 환경에 따라 사용할 수 있습니다.

사용 가능한 옵션

Dry brush or wet disinfectant operationSingle-step or walk-through lengthHandrail and turnstile integrationHand-disinfection moduleAutomatic chemical dosingDrain connection or removable tankBrush colors and bristle grades

Planning a Cleanroom Shoe Sterilizer specification?

치수, 설치 조건, 성능 목표 및 필요한 표면 마감을 보내십시오.
